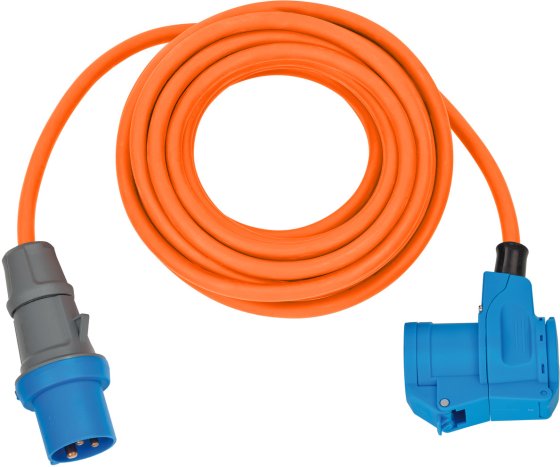

CEE Camping Extension Lead 10m cable in orange (CEE plug and angled coupling incl. earth contact combination socket, 230V/16A, for long-term outdoor use, Made in Germany)
beskrivelse
beskrivelse

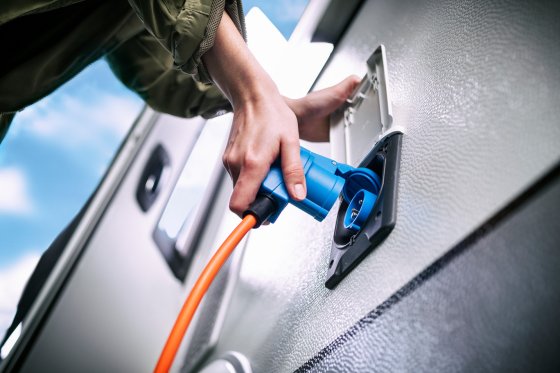

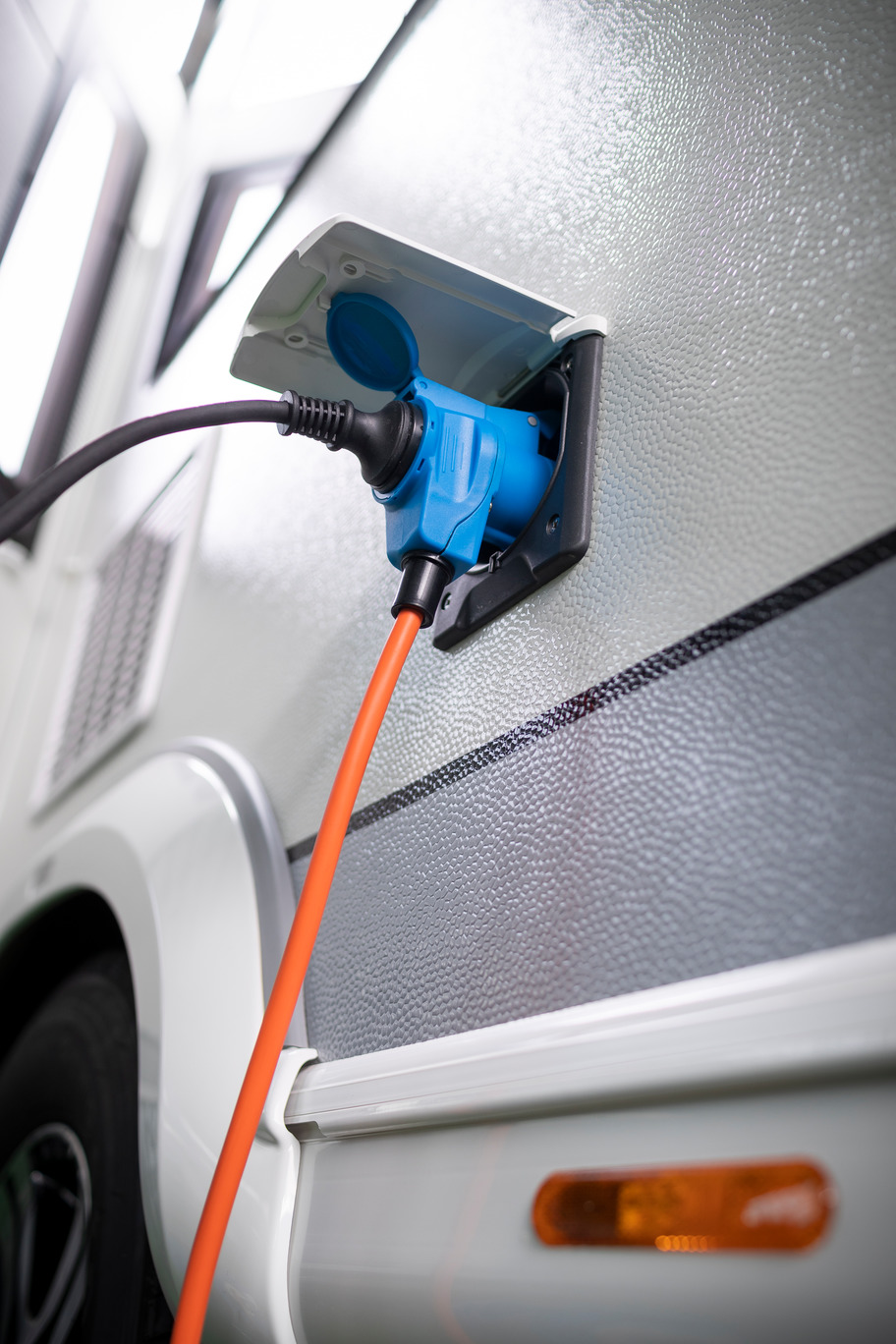

The CEE Extension Cable from Brennenstuhl has a CEE plug and angled coupling including a earth contact combination socket.Thanks to the IP44 protection class and the oil-resistant RN cable, the camping cable is ideally suited for permanent outdoor use, such as for caravans, motor homes, camping or even on boats. The caravan adapter cable with has the signal colour orange for extra safety. It is not only extremely robust, but also convinces with the following features:
- Cable length: 10m
- Cable designation: H07RN-F 3G2.5
- Cable quality: rubber-neoprene
- Plug system plug: CEE 230V/16A

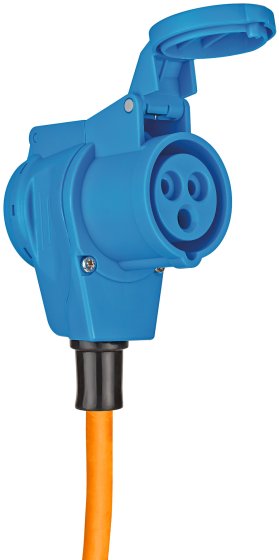

- Connection: CEE angle coupling, earthing contact plug
- Made in Germany
The right wire diameter
- A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
- A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
The right cable length on the campsite
- The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
The right connection cable
- The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
- Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.
tekniske data
tekniske data
- Cable designation: H07RN-F 3G2,5
- Cable length: 10 m
- Cable quality: Rubber-Neoprene
- With residual current circuit breaker (RCCB): No
- Oil-resistant: Yes
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
